High Power Directional Coupler 20CH170 (N-Female 700-2,700MHz)


Werbel Microwave presents model 20CH170, a single directional coupler covering 700-2,700 MHz.  Coupling is 20±1.25 dB throughout the band with 22 dB minimum directivity and 1.2:1 return loss.  Rated at 100 watts.  Designed for low-PIM applications.  Standard with N-Female connectors.  Measures 4.5 x 2.0 x 0.8 inches.  Crafted in USA.

Thursday, December 18, 2014

Werbel Microwave


Werbel Microwave thanks High Frequency Electronics magazine for the Directional Couplers Product Feature in their December 2014 issue on page 49 and also for the Hybrid Coupler mention on page 42.

Thursday, December 11, 2014

Werbel Microwave New 10dB Directional Coupler Covers 2-18GHz

Model 10CA1000 directional coupler from Werbel Microwave.  Ready for immediate production.  Lead time 6 to 8 weeks.  Covers 2-18 GHz continuously at 10 ± 1.25 dB and 15 dB directivity.

Click here for the specification and mechanical outline.

Click here for the test data sheet.

Click here to visit our web site.







Tuesday, December 2, 2014

Wideband 180-degree Hybrid Covers 4-18 GHz

Model 2JS1100 is a wideband 180-degree hybrid covering 4-18 GHz continuously.  Coupling is 4.5±0.6 dB and phase balance is ±20 degrees.  Isolation is 18dB, minimum and return loss is 1.8:1 max at all ports.  This model comes standard with SMA-Female connectors in a housing measuring 3.0 x 1.5 x 0.4 inches.

Complete line of 180-degree hybrids from Werbel Microwave.

All units serialized with test data plots included at no additional charge.

Coupling

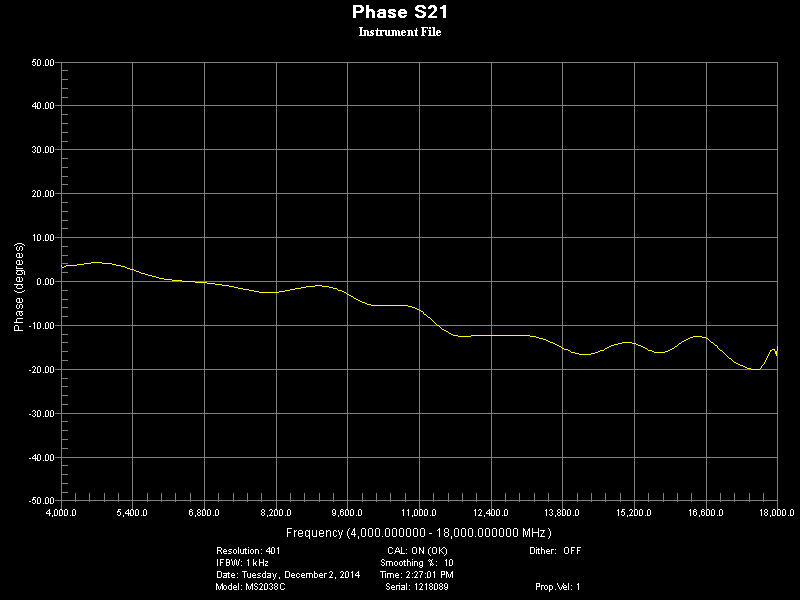

Phase Balance (0/180)

Return Loss


Isolation
